Decanter Centrifuge

Separation of Solids and Liquids
$82000
$ 69,000
  • BOM and Equipment List on Request
  • Pictures of Both units below
  • QTY Available: 2
Popular
Feed:  Solids and Hydrocarbons.  Typical application would be the separation of flowers and ethanol from CBD and THC plants.
Solid Recovery:  80 – 95%
Separation Speed:  4200 RPM
Separation Factor:  3000 G
Capacity:  1-1.5 M3/HR
Working Temperature:  -80 C to +90 C
Connections:  150 LB RF
Voltage:  480VAC, 3 phase, 60hz.
Drive:  2 Motor Drive with UL Rated Motors
Classification:  Explosion Proof
Weight:  2550 LBS
Dimensions:  97″ (L) x 33″ (W) x 52″ (H)
Noise:  < 85 DB (A)

This Decanter Centrifuge is a two-phase horizontal screw centrifuge suitable for the separation of liquids from solids.  Some examples include:  CBD/THC and Biofuel applications along with other types of oils/hydrocarbons separation.  This system is a Sanitary Grade unit and comes in explosion proof.   The unit is PLC and HMI controlled with Ethernet communication that can be used to connect to a main system.  The Electrical panel is 480vac, 3 phase, 60hz and comes with variable speed drives to control operating speeds.

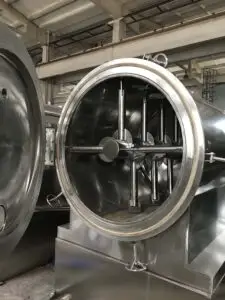

Rotary Dryers

Remove Moisture from Plant Material
$122000
$ 69,000
  • BOM and Equipment List on Request​
  • Units Are Identical
  • Qty Available: 2
Popular

Model

SRS2000

Total volume

2000L

Loading index

0.6

Working volume

1200L

Power of motor

15Kw

Speed

5-8rpm

Heating area

9M2

Designed pressure for tank inside

-0.092 to -0.096MPa

Designed pressure for jacket

0.3Mpa

Weight

3500Kg

Dimension

3815X1610X3421mm

Rotary vacuum dryer is a horizontal cylindrical jacketed shell with hollow agitator, rotating in close clearance. A Continuous-Batch operation, drying is done under vacuum, heating is through jacket and through rotating scraper mechanism. The dryer offers a simple but effective method of drying wet materials and sometimes slurries.

Materials of Construction:  SS304L
Voltage:  480 VAC, 3 Phase, 60Hz.
Food Grade:  Yes
Explosion Proof:  Class 1, Division 2
UL Rated:  Yes
Control System:  Siemens Based PLC and HMI with Pre-Loaded Program
Included Main Equipment Summary:

(1) Horizontal Vacuum Rake Dyer (see above Included Items)
(1) 8′ Screw Conveyor (see above Included Items)
(1) Vacuum Rotary Valve
(1) Liquid Ring Vacuum pump
(1) Water Recirculating Tank
(1) Condensate Colleting Tank
(1) Control panel (HMI / PLC)

Control System Components (BOM)

1

UL rated Electrics

Schneider

1set

2

UL rated PLC

Siemens

1set

3

UL rated Touch screen

Siemens

1set

4

UL rated VFD 15Kw

Siemens

1set

5

Communication extension module

Siemens

1set


Rake Dyer Components (BOM)


1

Big chain wheel

45 steel

1set

2

Small chain wheel

45 steel

1set

3

Chain



1set

4

Key

45

2sets

5

Cycloidal pin wheel reducer

BW17-71

1set

6

NEMA Motor class 1, division 2

Y180L-6 7.5kW

1set

7

Inner body

8mm SUS304

1set

8

Jacket

10mm Carbon steel

1set

9

Thermal insulation

Aluminum silicate

1set

10

Outer cover

2.5mm SUS304

1set

11

Main shaft

Ф219 SUS304

1set

12

Fulcrum shaft

Φ76 SUS304

1set

13

Rake

4mm SUS304

1set

14

End plate

30mm SUS304

2sets

15

Flange and flange cover

SUS304

2sets

16

Sight glass

DN100

1set

17

Feed inlet

8’ SUS304

1set

18

Feed outlet

   8’ SUS304

1set

19

Vacuum draw port

Φ100 SUS304

1set

20

Sintering mesh filter

SUS304

1set

21

Bearing seat



2sets

22

Bearing

24024

2sets

23

Shaft sealing

Mechanical ones

1set

24

Frame

SUS304

1set

25

Vacuum gauge



1set

26

Dual metal Temp. gauge



1set

27

Discharge valve

 SUS304

1set

28

Bolts and screws

SUS304

1set

29

Water ring vacuum pump

SUS304 5.5Kw

1set

30

Rotary joint



1set

31

Sealing

fluororubber

1set

32

Condensate collection tank

150L SUS304

1set

33

Water recirculating tank

75L SUS304

1set

34

8’ screw conveyor with Teflon seals for liquid and vapor. Direct drive

Power:1.5Kw SUS304

Lifting height:6’

1set

35

Vacuum rotary valve 6L  0.75Kw

SUS304

1set
